Big Bag Unloading to Silo Truck Solutions

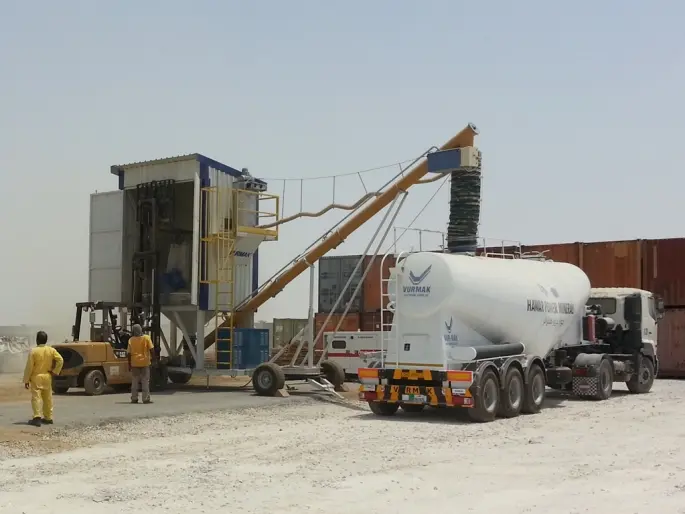

A high-efficiency, mobile FIBC (Big Bag) unloading system designed for rapid, dust-free transfer of bulk materials like cement, lime, and fly ash directly into silo trucks (bulkers).

Vanguard Big Bag Unloading to Silo Truck Solutions represent the peak of operational flexibility in bulk logistics. These systems reach filling speeds of up to 80–90 m³/h, allowing a standard silo truck to be filled in just 30–45 minutes. Engineered with specialized increasing-pitch screw technology and powered by 22–37 kW high-performance drive units, the system ensures smooth material flow without clogging. The integrated jet-pulse filtration system delivers near-complete dust-free operation, making it ideal for environmentally sensitive sites and urban terminals.

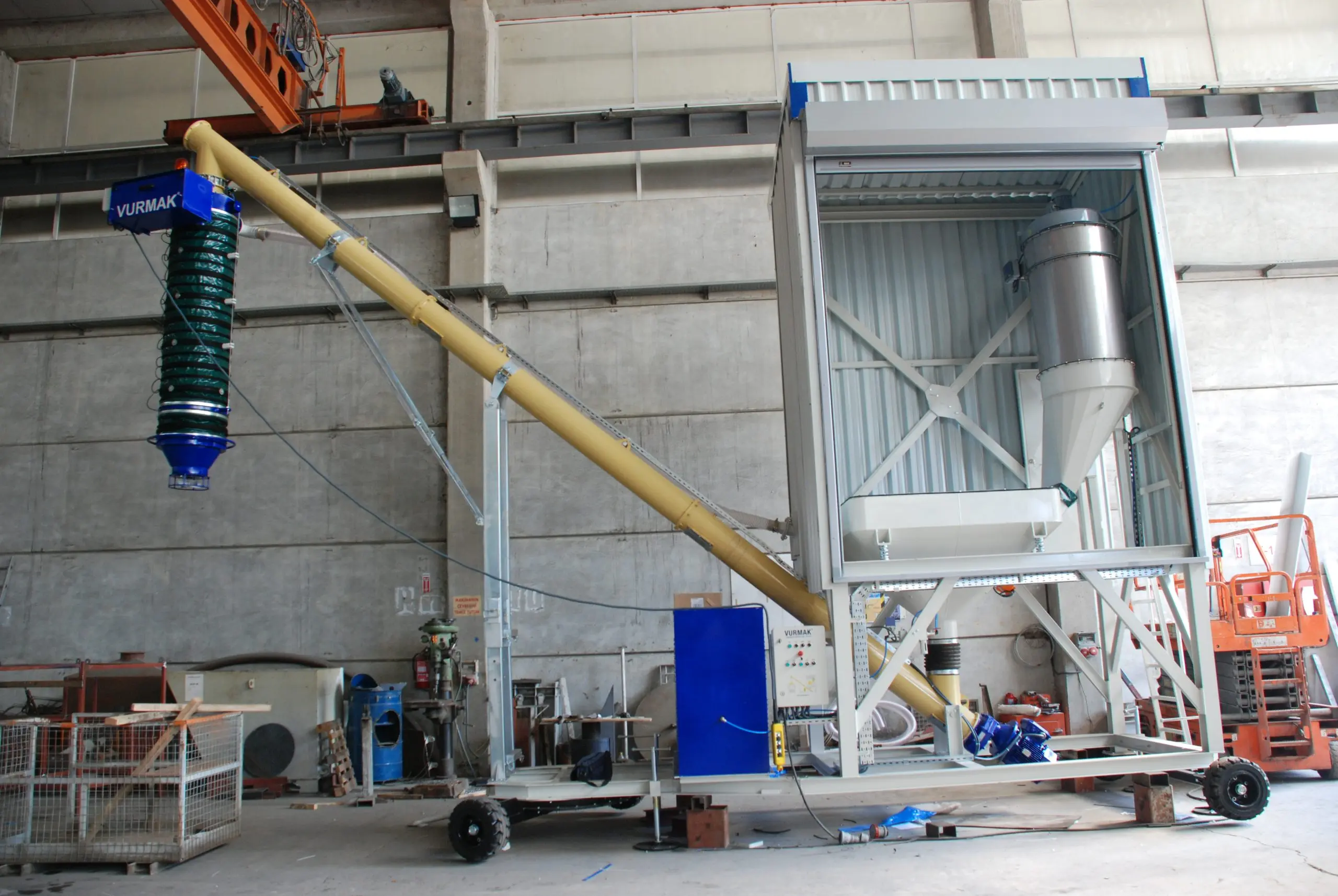

Mobil Big Bag Unloader Truck Loading
Mobil Double Big Bag Unloader Truck Loading
Quadruple Big Bag Unloader Truck Loading
Tailored Configurations for Specific Operations
Big Bag Unloading to Silo Truck Solutions

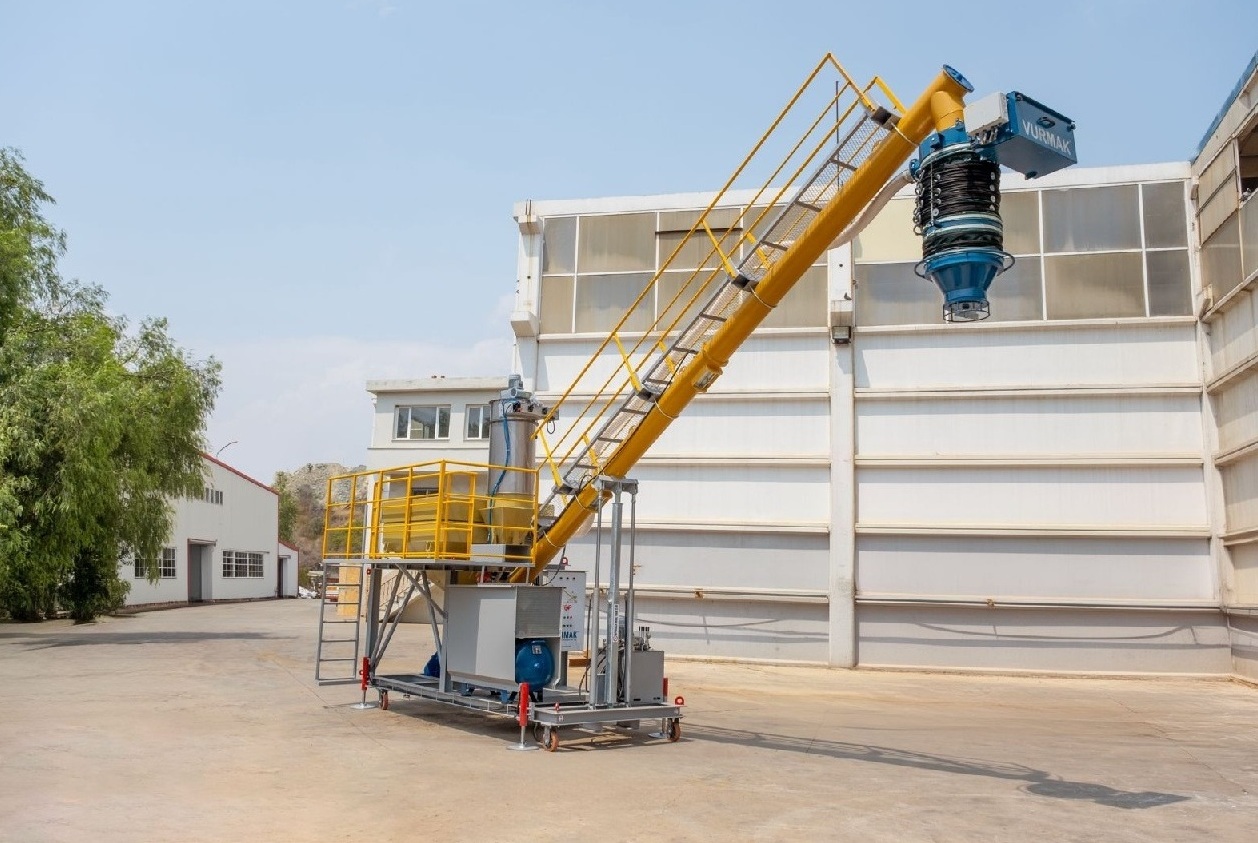

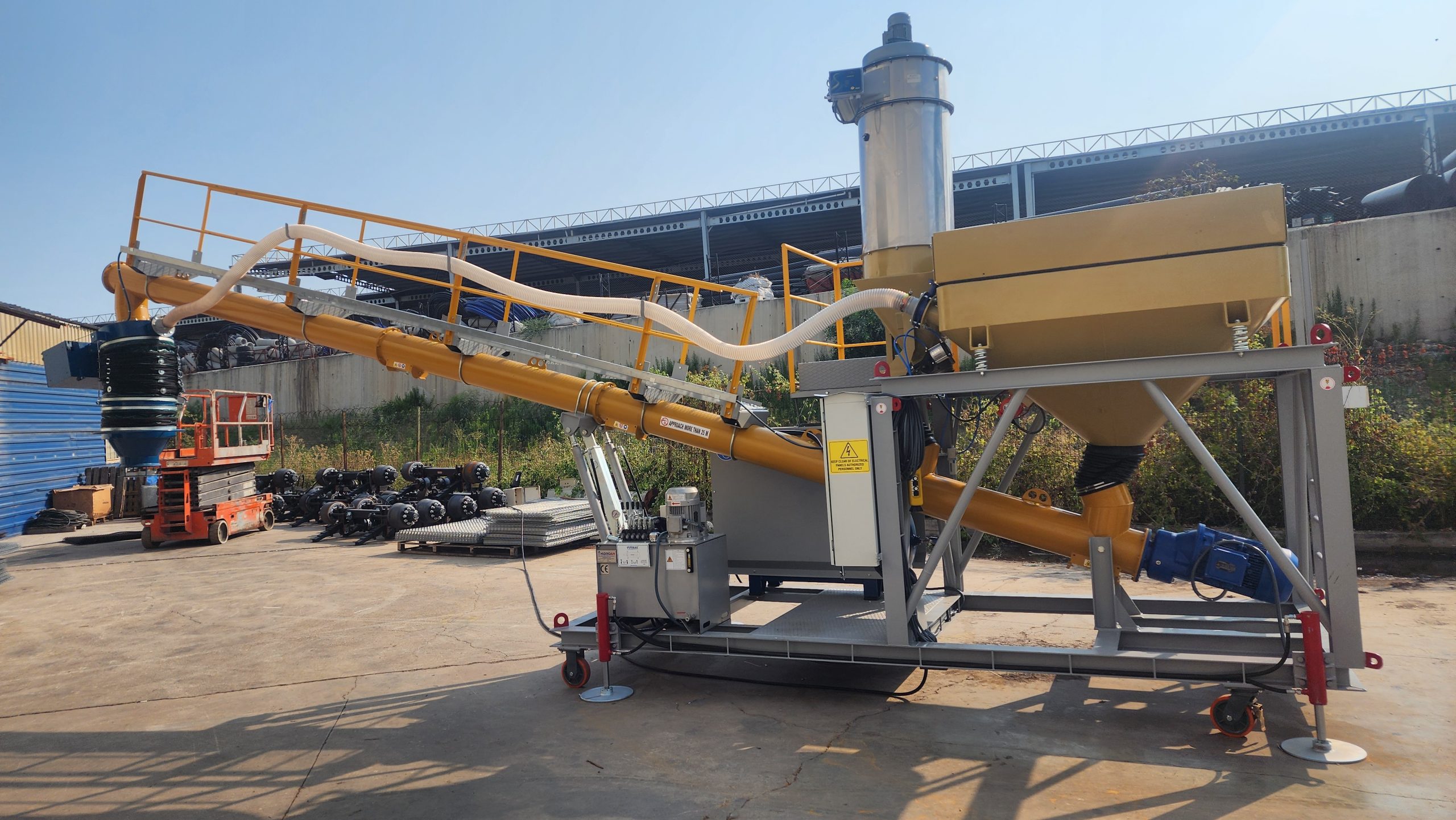

Features a high-mobility chassis that can be easily repositioned within the terminal, plus a hydraulic folding mechanism for rapid setup and high-speed transfer.

Big Bag Unloading to Silo Truck Solutions

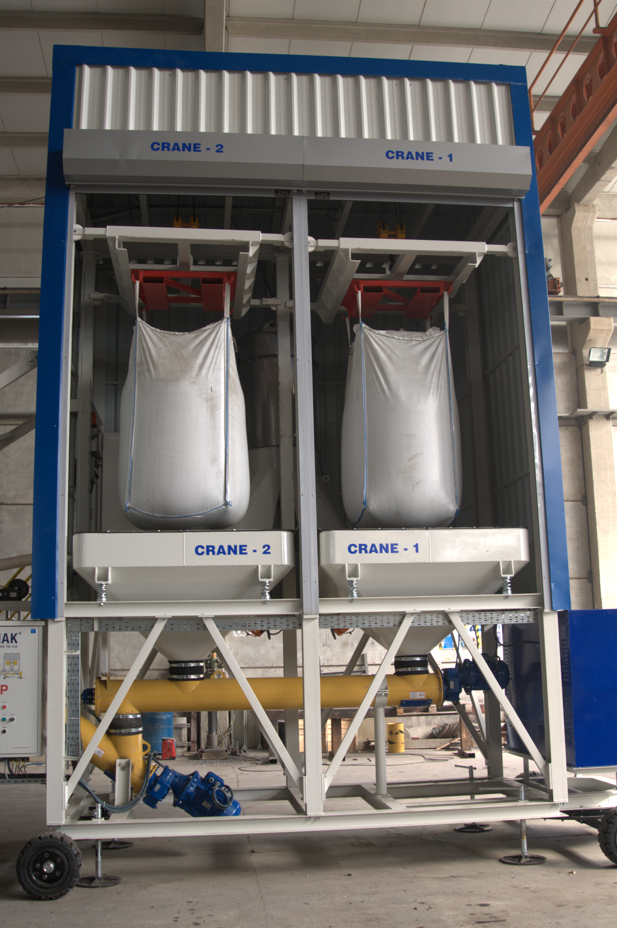

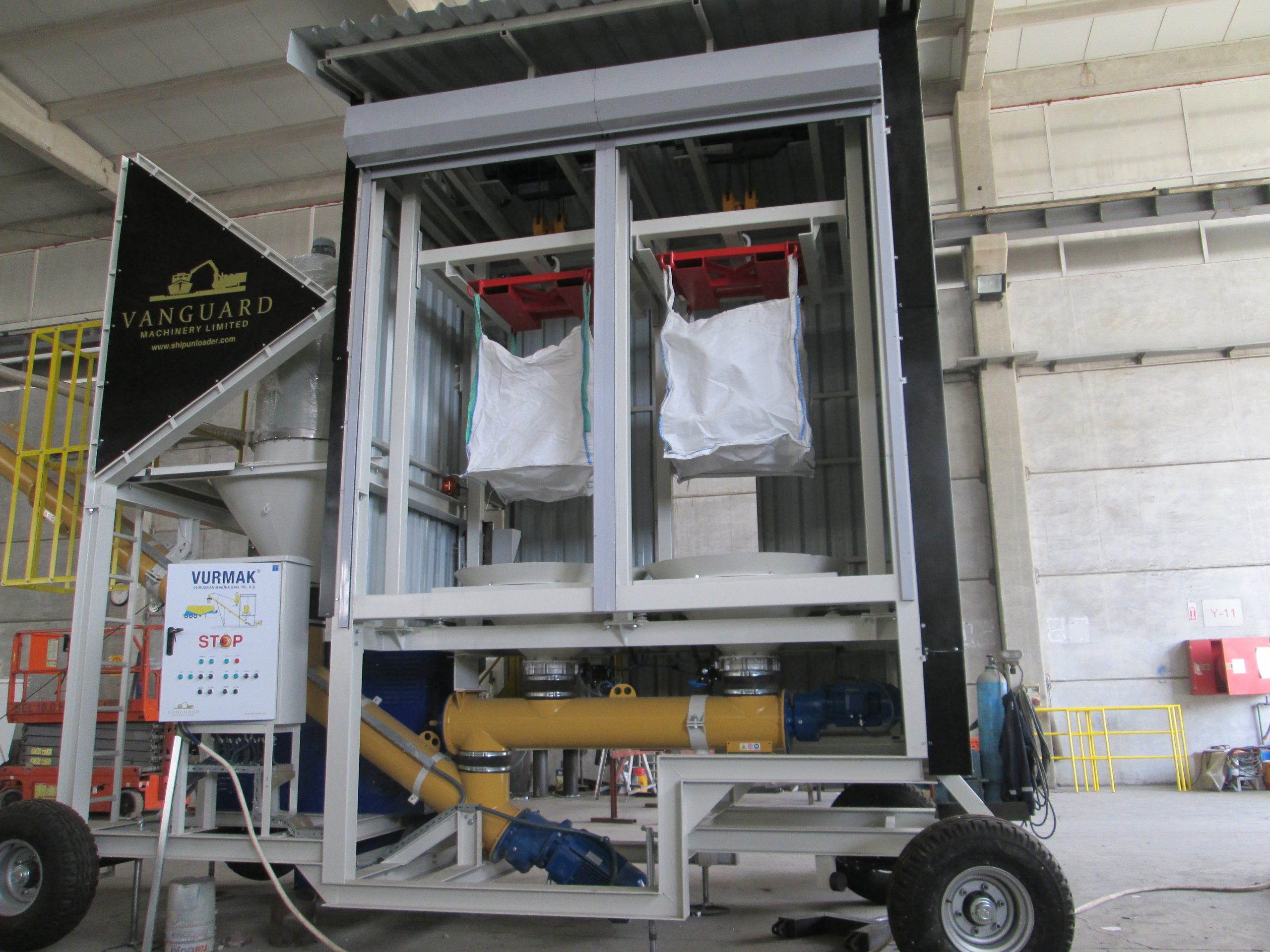

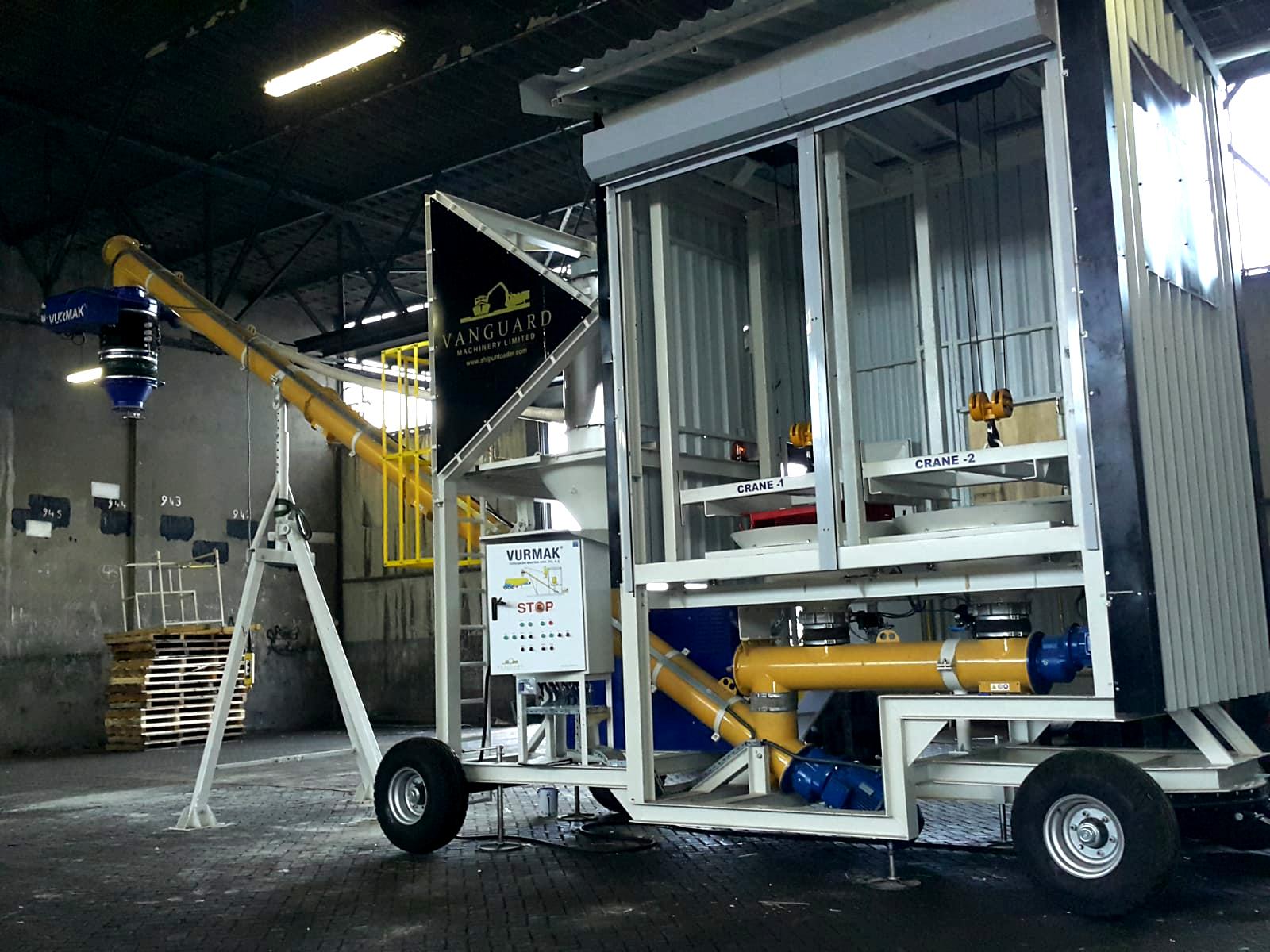

Designed for dual-sided operation to double intake capacity. This configuration enables continuous feeding, minimizing downtime during bag changes.

Big Bag Unloading to Silo Truck Solutions

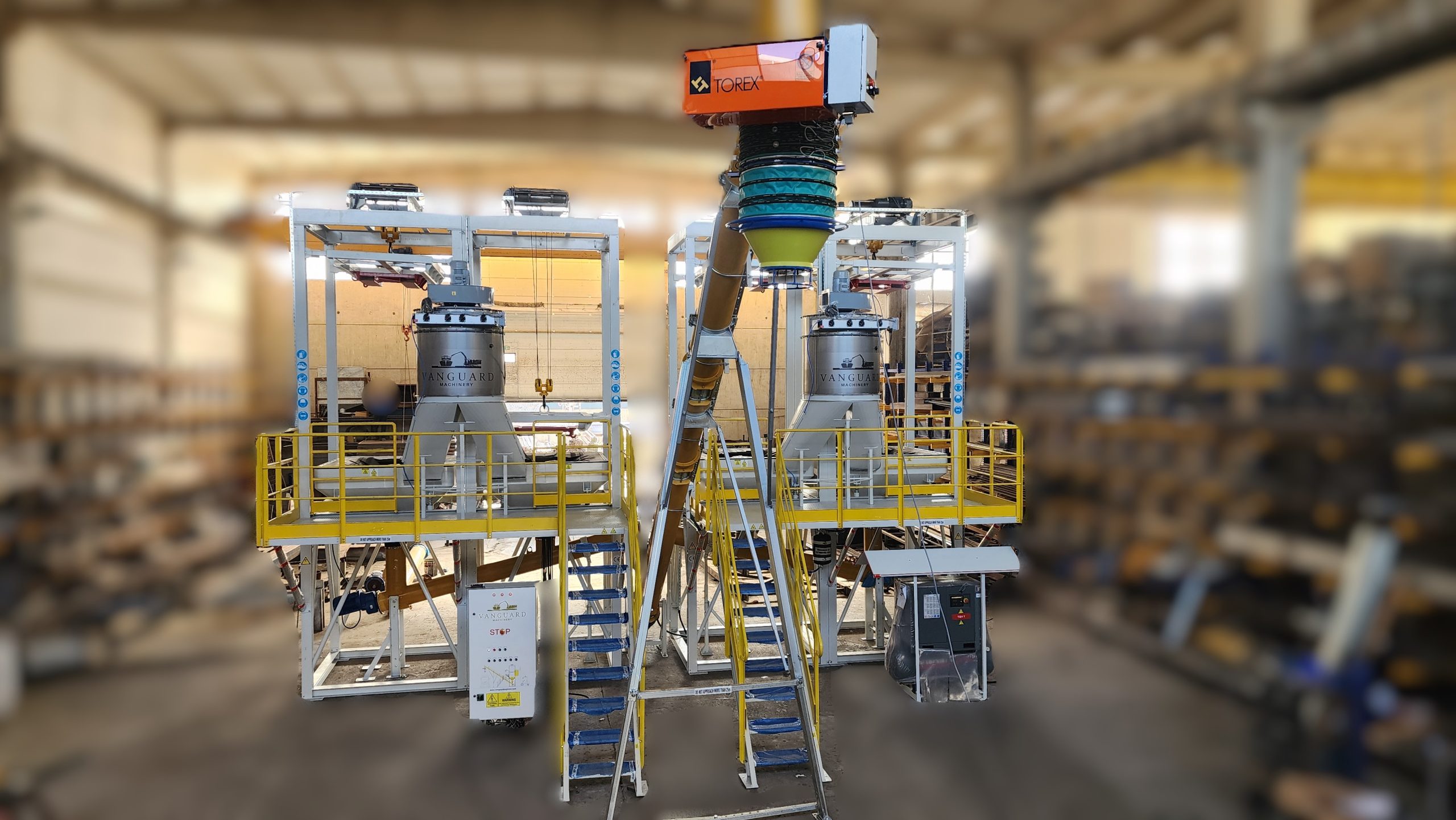

An industrial-scale solution for high-volume terminals, capable of handling four FIBCs simultaneously to maximize throughput and achieve peak ROI.

Big Bag Unloading to Silo Truck Solutions

Customizable options include specialized inlet hoppers, Hardox liners for abrasive materials (clinker, aggregates), and remote-controlled hydraulic components for site-specific requirements.
